Navigator SF24
navigator-sf24-1.jpg navigator-sf24-2.jpg navigator-sf24-3.jpg

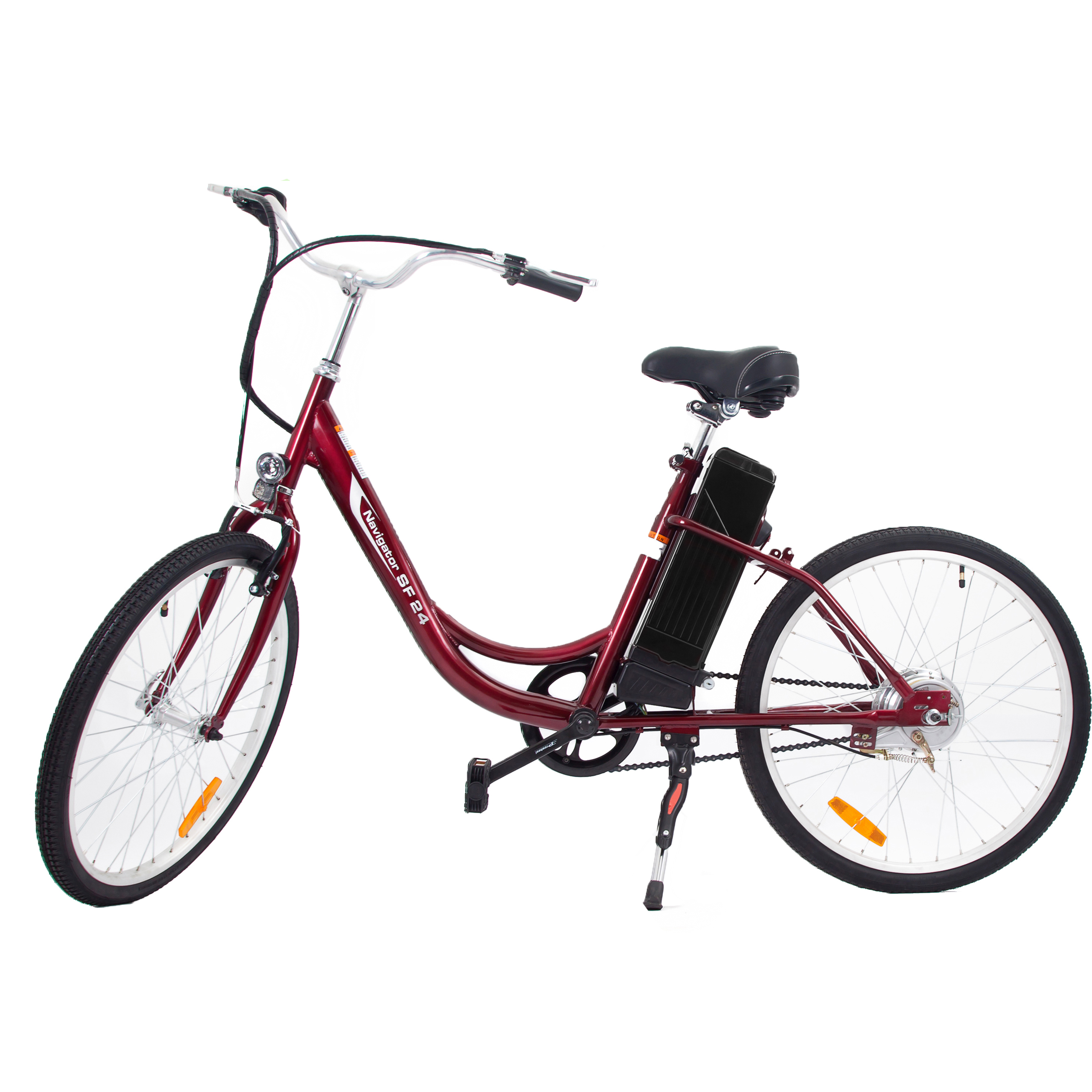

NAVIGATOR SF24

Single Speed Bike

Eco-Friendly Electric Bike

Simple and easy, the Navigator Urban Street electric bike is all you need to enjoy around town, it can speed up to 15 miles per hour and has a range of 28 miles per charge. This bike is ideal for transportation around the city and still enjoy the pleasure of a smooth ride.

Specifications:-

  • Motor: 250W, 24V Brushless
  • Battery: Lead Acid 24V / 10AH
  • Controller: Speed sensor 24V brushless PAS (pedal-assisted system)
  • Display: Battery capacity
  • Max Speed: Up to 15 MPH (rider weight contingent)
  • Range: Up to 28 miles per charge(rider weight contingent)
  • Gear Set: Single speed
  • Brakes: F/R: V-Brake
  • Tires: 24” x 1.75W, with reflector
  • Rims: 24” Alloy Double Wall
  • Handlebar/Stem: Steel handlebar and stem
  • Front Fork: Rigid steel fork
  • Seat: Wide leather, steel seat post
  • Frame: Steel frame size – 24” x 18”
  • Pedals: Plastic with reflectors
  • Crank Set: Steel crank sets

Model No.: MS-EBLAF24
Net Weight: 99 lbs
Dimensions: 66” x 11” x 33”
UPC No.: 8 15577 01904 7
Color: Champagne Red
Container Qty.: 159

Product Downloads
  1. Product Sheet click here
  2. Assembly Manual click here
  3. Owner's Manual click here
  4. Parts List click here
  5. Warnning Sign click here
